Armoured Cable Gland

The Abtech AAG gland is designed for use with armoured cable types and features a double compression seal both on the outer and inner cable sheaths.

The AAG is designed for use with single wire armour (W), wire braid (X), steel tape armour or screened flexible wire braid.

The gland is rated IP66/67 and has an operating temperature range of -60°C to +100°C.

The AAG is dual ATEX and IECEx certified and marked as Flameproof (Ex d) and Increased Safety (Ex e).

As with all Abtech cable glands, the AAG range is supplied as standard in Nickel plated Brass. A Stainless Steel version is also available.

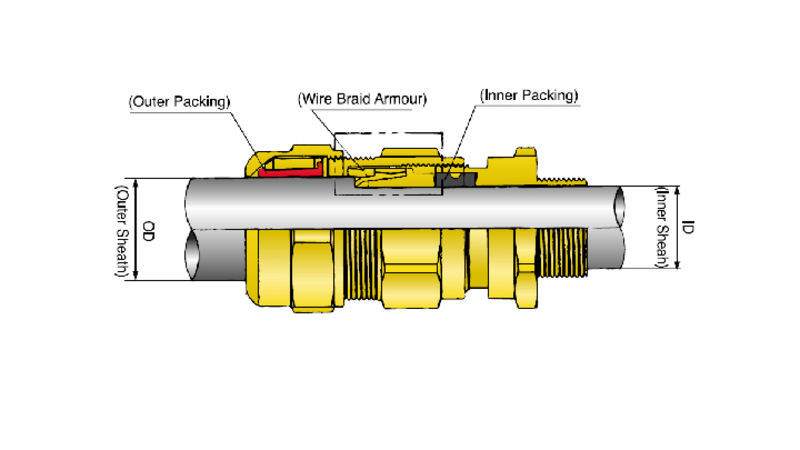

Armoured Gland Diagram

  • Suitable for many cable types including single wire armour (W), wire braid (X)

  • Double compression seal suitable for both outdoor and indoor installation

  • Flameproof Ex d and Increased Safety Ex e
