High current enclosure for up to 3kA

This high-current enclosure offers enhanced flexibility using a range of tinned copper busbars mounted in a tiered arrangement. The SX busbar provides termination for cables carrying up to 3000 Amps.

The arrangement of busbars in this enclosure can be tailored, allowing a variety of configurations suitable for inflexible, higher-current carrying cables. These are housed within a 316L (1.404) stainless steel enclosure that is both IP66 and Type 4X rated and DTS-01 deluge tested.

Suitable for high current, medium voltage installations. The SX Busbar can accommodate up to five conductors per phase, plus neutral with an optional earth bar facility. All in a bottom or top entry-only configuration. The full load current is determined per connector and is size-dependent.

This enclosure is ATEX and IECEx approved for use in areas where potentially explosive gas and dust may be present.

SX Busbar enclosure for high current

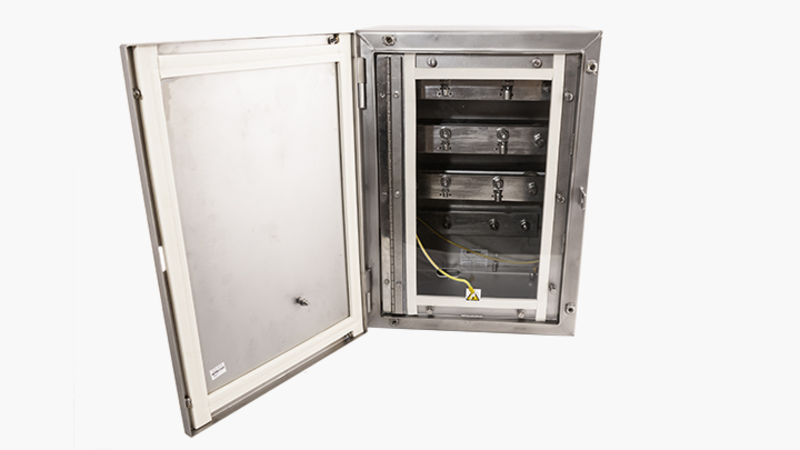

SX Busbar with anti-tamper cover

  • Up to 3000A and 5kV

  • Wide ambient temperature range: -50°C to +90°C

  • Up to 5 conductors per way + neutral

Standard Specification

Product Reference Width (mm) Height (mm) No. Ways Max Voltage (kV) Max. 5-Cond. current (A) ΔT = 40K Max. 3-Cond. current (A) ΔT = 40K Max. Conductor Size (mm2) Weight (KG)
ESXBB54 510 510 3 3.3 260 340 120 80
ESXBB64 510 780 3+N 5 290 370 240 90
ESXBB74 650 950 3+N 5 440 570 500 97
ESXBB84 800 1250 3+N 5 645 835 800* 105

* - 1000mm sq possible by special arrangement.

The standard enclosure is 400mm deep.

Note - Current ratings shown are based on the size of a single cable and are not cumulative. Dimensions may vary due to the size and quantity of cables. Full cable details are required to provide accurate details.
