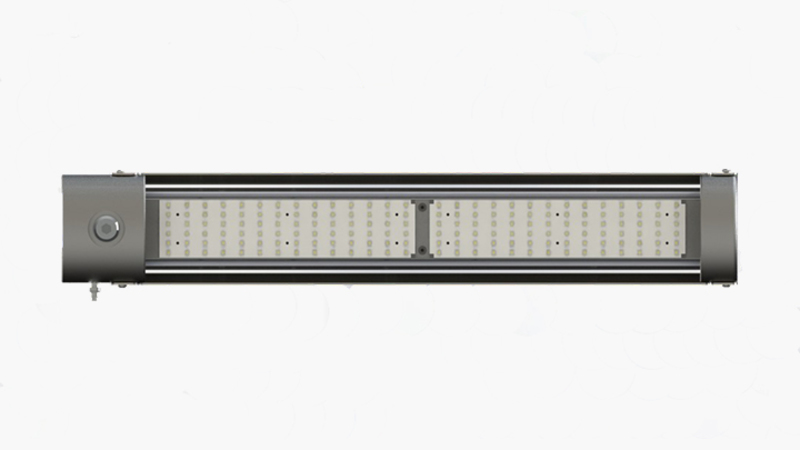

Submersible LED Linear
The Nimo is an LED submersible luminaire designed for operation in Zone 1 hazardous areas that are prone to flooding or infrequent submersion. It is rated IP68 and both ATEX and IECEx compliant.
This submersible luminaire is manufactured from marine grade 316 (1.404) stainless steel, with toughened borosilicate glass and 316 stainless steel fixings. It has been tested to depths of thirty metres for extended periods. The Nimo's rugged construction ensures that the effects of prolonged exposure to water and marine environments are minimised.
Combined with its LED light source, the Nimo truly is a low maintenance luminaire for the harshest environments.
IP68 to 30 metres for extended periods
316 Stainless Steel construction for maximum corrosion protection
Low maintenance LED light source
|Product Reference||Colour Temperature (K)||Lumen Output (lm)||Power (W)||Ambient Range||Weight (KG)|
|LX1NIMO||5700||2000||12W||-20°C to +55°C||8.9|
(PDF, 243 KB)
(PDF, 150 KB)
(PDF, 483 KB)
