Flame Resistant Junction Box

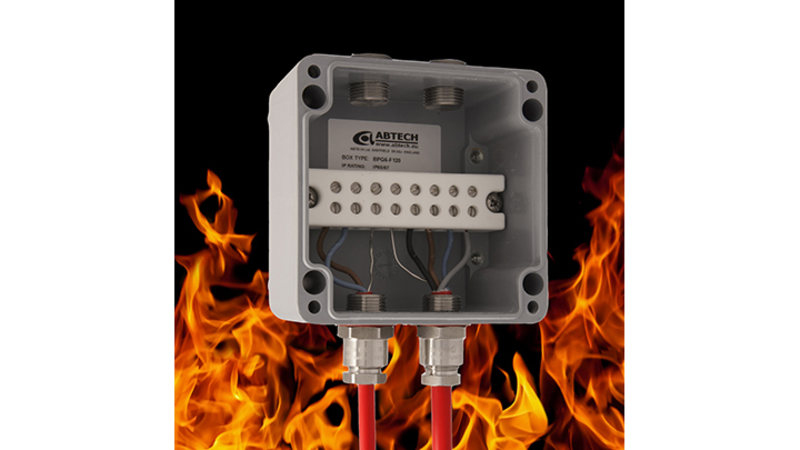

A fire rated GRP junction box designed to ensure increased fire survivability for safety-critical electronic circuits. The BPGF has been tested to provide PH120 insulation integrity in accordance with BS EN 50200.

The BPGF range is comprised of two sizes of fire-rated enclosures. These are pre-assembled with Abtech’s 8-way or 12-way ceramic terminal blocks.

For ease of installation, the BPGF is configured completely with four M20 threaded entries, two stainless steel plugs and two transit plugs.

The BPGF range has been tested to provide the highest level of insulation integrity (120-minute exposure), this is in accordance with BS EN 50200 & BS 8434-2 (>930°C) with exposure to fire with water spray & mechanical shock. Rated voltage 600Vrms.

To ensure fire resistance is maintained, enclosures should always be installed using appropriately rated cable and glands.

Fire rated junction box
  • 120 minutes insulation integrity at 930 Deg C to BS EN 50200

  • 8-way & 12-way ceramic terminals

  • Pre-built ready for installation

Standard Sizes

Product Reference Width (mm) Height (mm) Depth (mm) No. of Terminals Max Conductor Size Weight (Kg)
EBPG6F-120 122 120 90 8 6mm2 0.95
EBPG8F-160 160 160 90 12 6mm2 1.2

In addition to pre-assembled enclosures, Abtech can provide fire-rated stainless steel or GRP enclosures to your exact specifications. These will be fitted with ceramic components to maintain the integrity of your electrical connection.

Note: The fire resistance tests we have conducted are only applicable when a ceramic terminal or pillar is used for cable connection. The fitting of any other equipment is not covered within the scope of these tests and may require additional testing.
